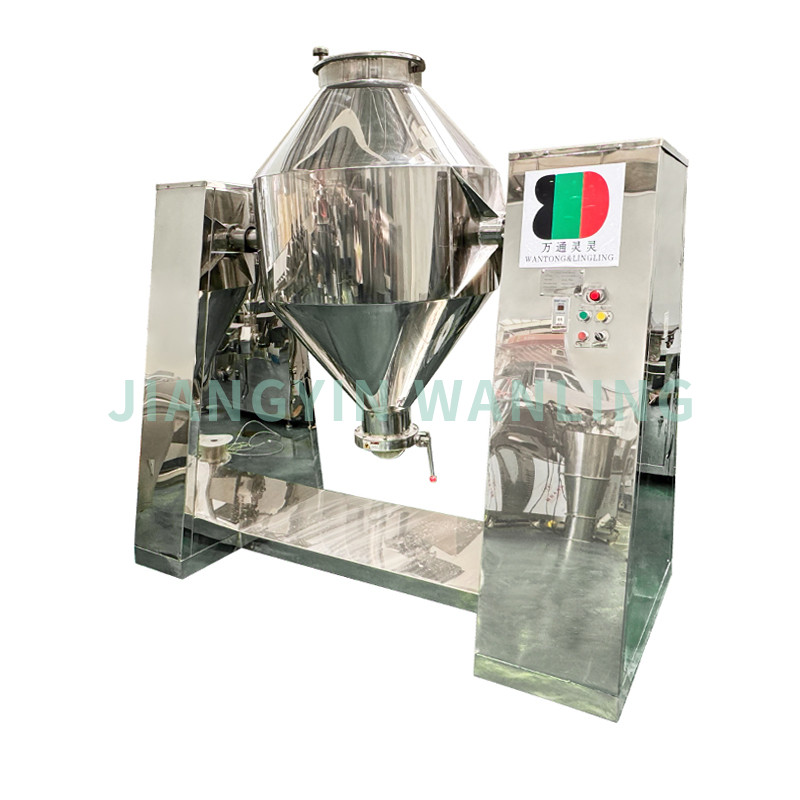

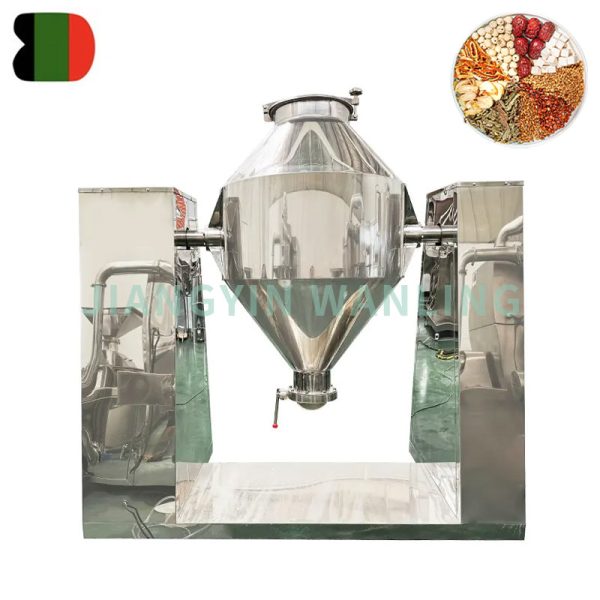

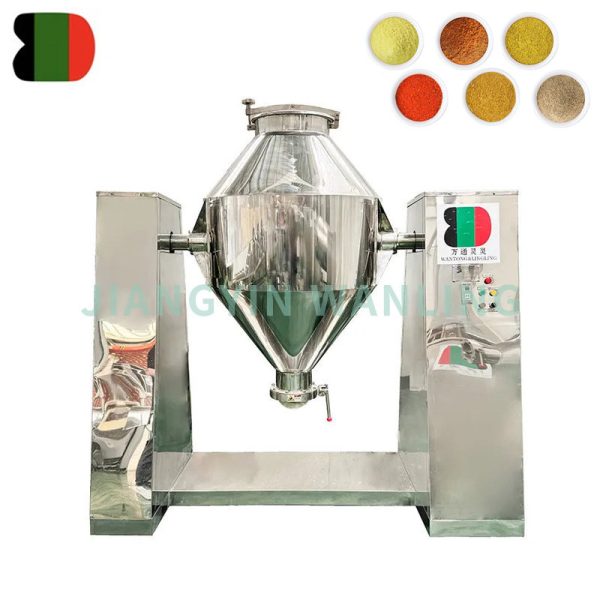

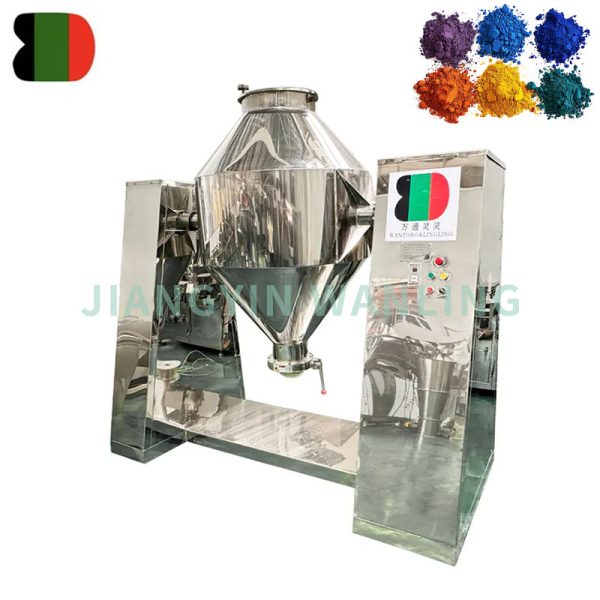

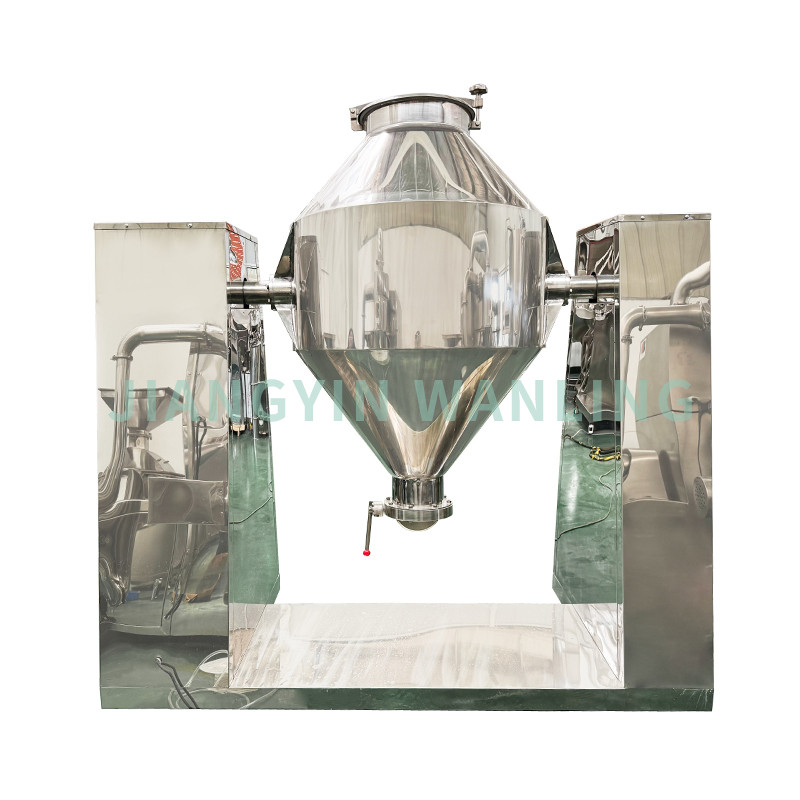

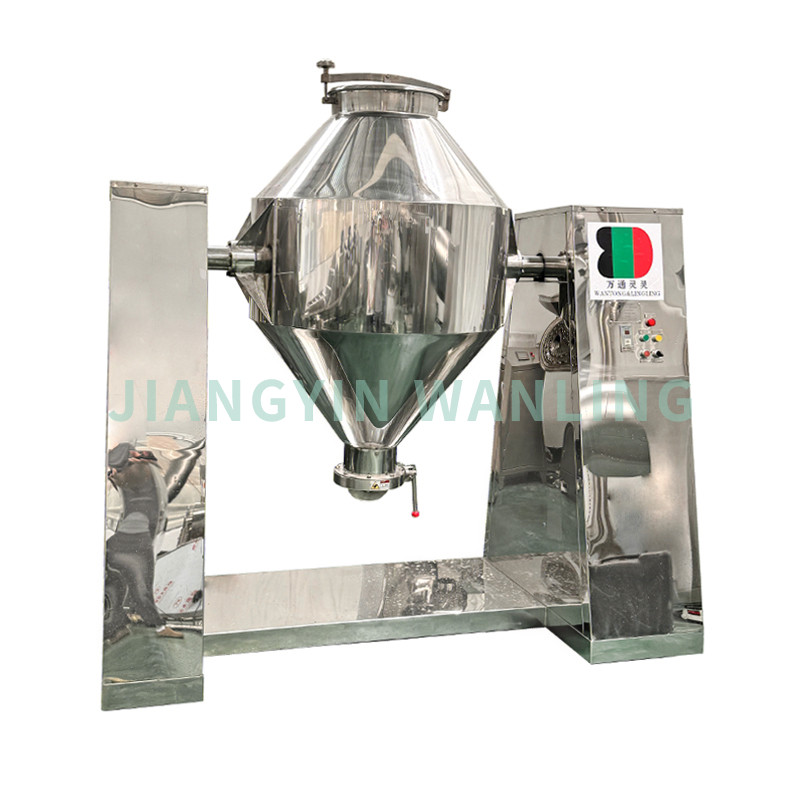

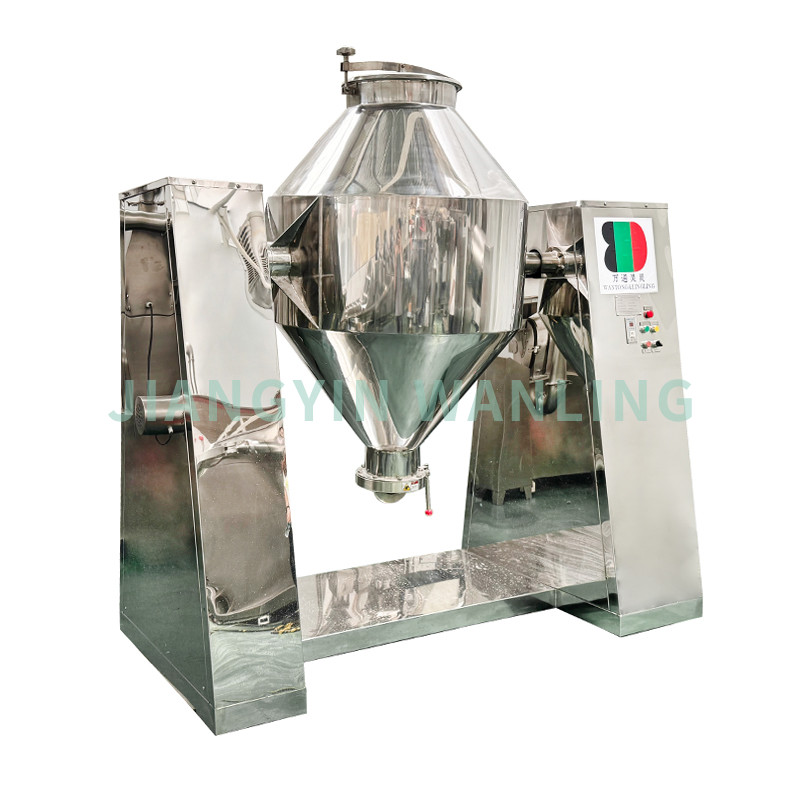

The double cone dryer machine is a vacuum type drying machine,it can dry material under vacuum condition.This drying machine support steam,hot water and hot oil heating,clients can choose suitable heating way according to their request. This machine is made of stainless steel 304,widely used in chemical pharmaceutical dyestuff food industry.
The double cone dryer machine is a vacuum type drying machine,it can dry material under vacuum condition.This drying machine support steam,hot water and hot oil heating,clients can choose suitable heating way according to their request. This machine is made of stainless steel 304,widely used in chemical pharmaceutical dyestuff food industry.
SZG double cone dryer can work at the vacuum state,so it suitable for many special material,such as
1.Materials that are prone to oxidation
2.Materials that require solvent recovery
3.Heat sensitive materials
|
Model |
SZG-100 |
SZG-350 |
SZG-500 |
SZG-750 |
SZG-1000 |
SZG-1500 |
SZG-2000 |
SZG-3000 |
SZG-5000 |
|
Total volume (L) |
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3000 |
5000 |
|
Loading volume (L) |
≦50 |
≦175 |
≦250 |
≦375 |
≦500 |
≦750 |
≦1000 |
≦1500 |
≦2500 |
|
Rotary speed (r/min) |
3-13 |
||||||||
|
Motor power (kw) |
0.75 |
1.1 |
1.5 |
2 |
3 |
3 |
4 |
5.5 |
11 |
|
Rotary height (m) |
1.75 |
2.1 |
2.25 |
2.49 |
2.8 |
2.94 |
2.99 |
3.33 |
3.9 |
|
Tank inner pressure (Mpa) |
-0.09-0.15 |
||||||||
|
Clip set pressure (Mpa) |
≦0.3 |
||||||||
|
Working temp.(℃) |
Inner≤85, jacket≤140 |
||||||||
|
Heating way |
Steam, Hot water, Heat transfer oil heating |
||||||||
|
Weight (kg) |
800 |
1100 |
1200 |
1500 |
2800 |
3300 |
3600 |
4300 |
5500 |
|
Floor area (L*W) |
2160*800 |
2260*800 |
2350*800 |
2550*1000 |
2860*1300 |
3260*1400 |
3760*1800 |
3900*2000 |
4770*2300 |
We are very big company,we have many drying machine,like CT hot air tray dryer,GFG fluid bed dryer,SZG double cone vacuum dryer,FZG vacuum dryer,ZG vibrating fluid bed dryer,belt dryer and LPG spray dryer,if you need other dryer machine,welcome to contact us.
