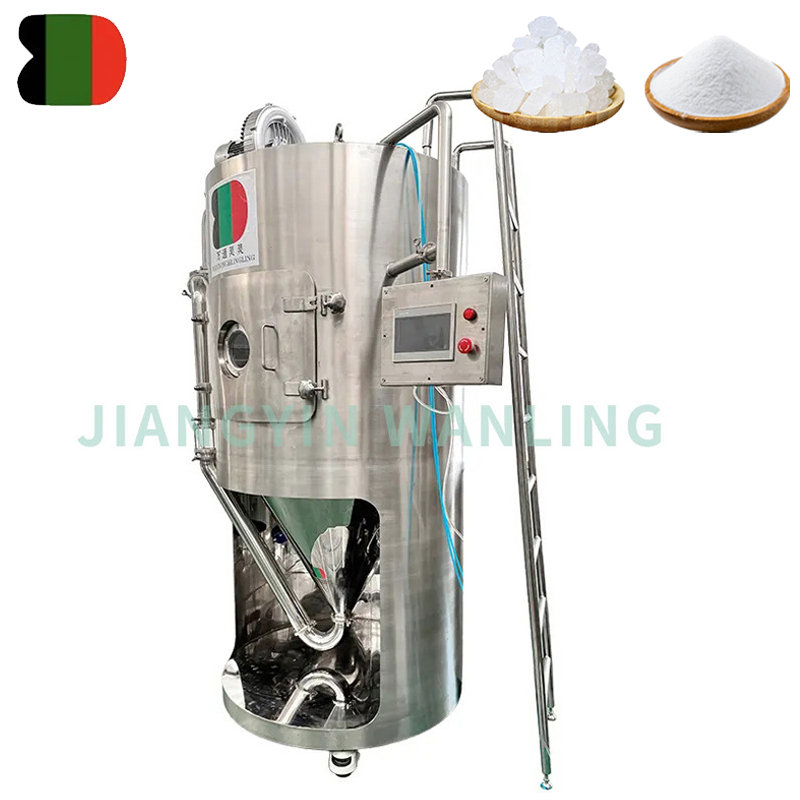

The spray dryer is used to dry milk to get dried milk powder. In order to prevent the material from being polluted and prolong the service life of the equipment, all the parts in contact with the material are made of stainless steel. In order to facilitate the operation, the control system adopts integrated operation.
The spray dryer is used to dry milk to get dried milk powder. In order to prevent the material from being polluted and prolong the service life of the equipment, all the parts in contact with the material are made of stainless steel. In order to facilitate the operation, the control system adopts integrated operation.
| Modelparameter | LPG | ||||||||
| 5 | 25 | 50 | 100 | 150 | 200 | 500 | 1000 | ||
| Inlet temperature(℃) | 130-300 | ||||||||
| Outlet temperature(℃) | 70-90 | ||||||||
| Water evaporation(kg/h) | 3-7 | 18-25 | 35-50 | 75-100 | 120-150 | 170-210 | 400-500 | 800-1000 | |
| Transmission mode of atomizer | Driven by compressed air | Mechanical drive | |||||||
| Revolving speed(r/min) | 25000 | 18000- 27000 | 18000- 27000 | 18000- 27000 | 15000- 18000 | 15000- 18000 | 12000- 15000 | 12000- 15000 | |
| Heat source | electricity | electricity | steam+electricity | steam+electricity | steam+electricity | steam+electricity | steam+electricity | steam+electricity | |
| Transmission power(kw) | 4.2 | 14 | 18 | 23 | 29 | 43 | 76 | 109 | |
| Heating power(kw) | 18 | 36 | 48 | 72 | 84 | 96 | 144 | ||
| Dry powder recovery(%) | ≥97 | ||||||||
| Tower diameter(m) | 1.2 | 1.9 | 2.2 | 2.56 | 2.96 | 3.36 | 5.2 | 7.6 | |
| Height(m) | 2.2 | 3.6 | 4.6 | 5.4 | 6.3 | 7 | 9.2 | 12.4 | |
