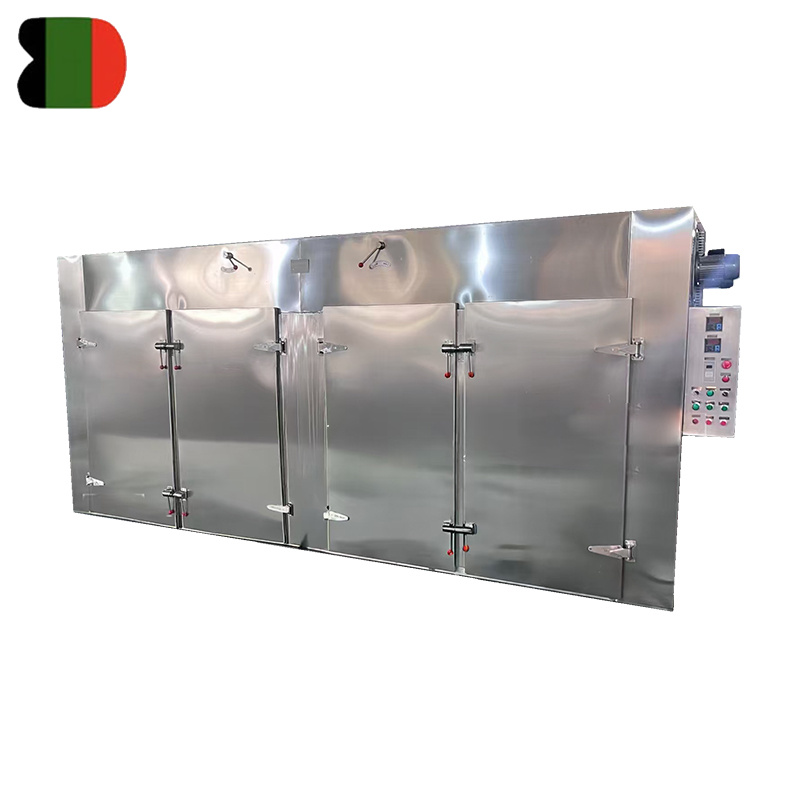

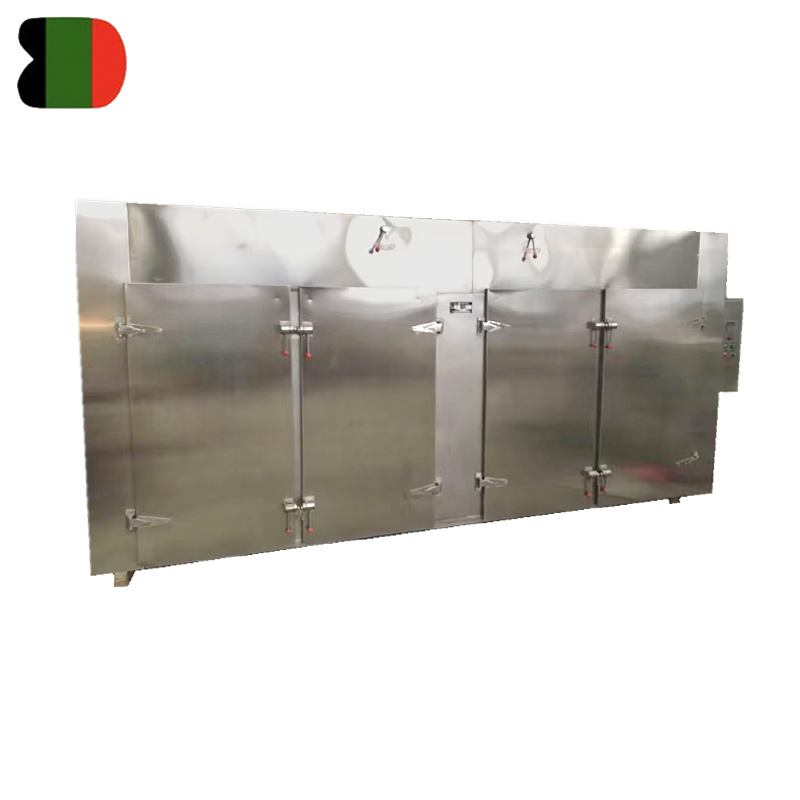

The mushroom drying machine is made of stainless steel,it is consisted of control box,tray,drying cart,fan motor and drying room. This machine sealing is very good,when machine work,hot air will flow and dry material in the drying room,it will mostly keep heat and save energy,so this machine consumption is very low,many clients like this hot air tray dryer.
The mushroom drying machine is made of stainless steel,it is consisted of control box,tray,drying cart,fan motor and drying room. This machine sealing is very good,when machine work,hot air will flow and dry material in the drying room,it will mostly keep heat and save energy,so this machine consumption is very low,many clients like this hot air tray dryer.
| Model | Evaporated area(m²) | Effective volume ((m³) | Capacity (kg/batch) | Radiator Area (m²) | Steam (kg/h) | Electric Power (kw) | Fan Volume (m³/h) | Fan Power (kw) | Inner Temp. Difference(℃) | Overall (mm) | Car No. | Tray No. | Weight (kg) |
| CT-C-0 | 7.1 | 1.3 | 60 | 15 | 15 | 6-9 | 4510 | 0.45 | ±1 | 1380×12 00×2000 | 1 | 24 | 820 |
| CT-C-Ⅰ | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 4510 | 0.45 | ±2 | 2360×12 00×2000 | 2 | 48 | 1580 |
| CT-C-Ⅱ | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45 ×2 | ±2 | 2260×22 00×2000 | 4 | 96 | 1800 |
| CT-C-Ⅲ | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | ±2 | 3240 ×22 00 ×2000 | 6 | 144 | 2210 |
| CT-C-IV | 56.5 | 10.3 | 500 | 96 | 80 | 60 | 18040 | 0.45×4 | ±2 | 4280 ×22 00×2770 | 8 | 192 | 2800 |
