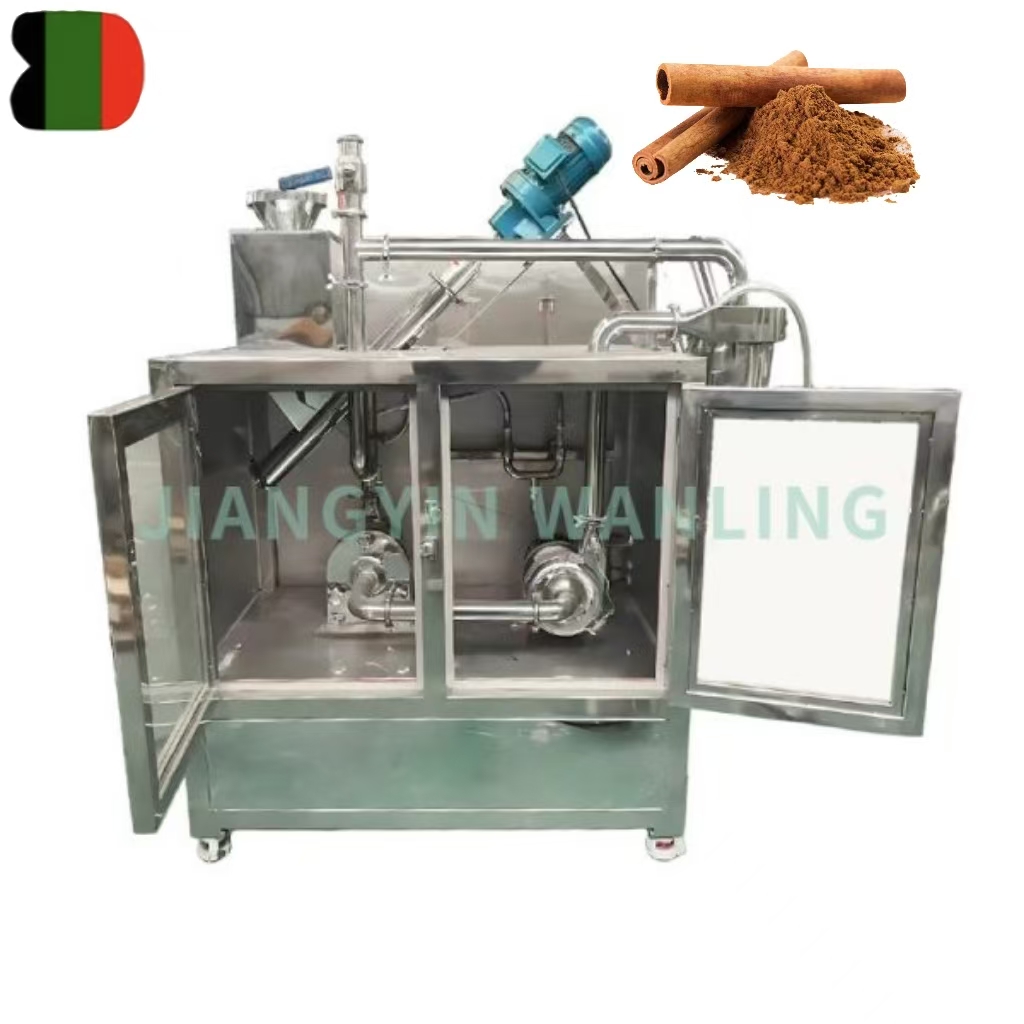

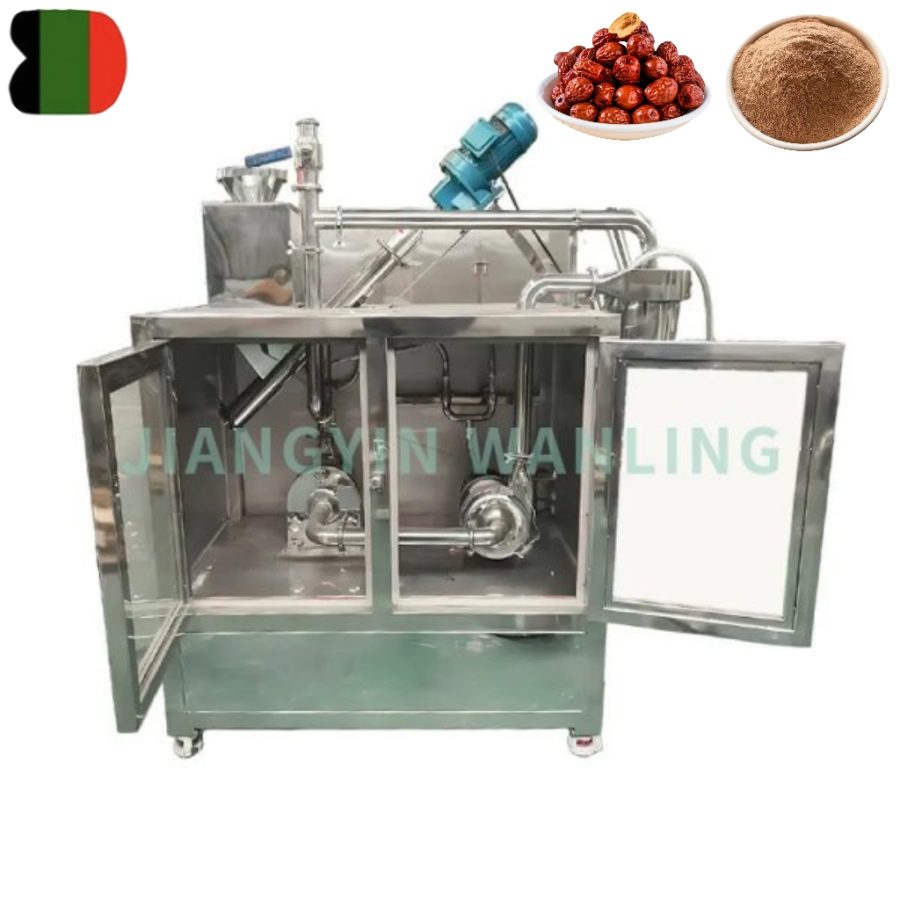

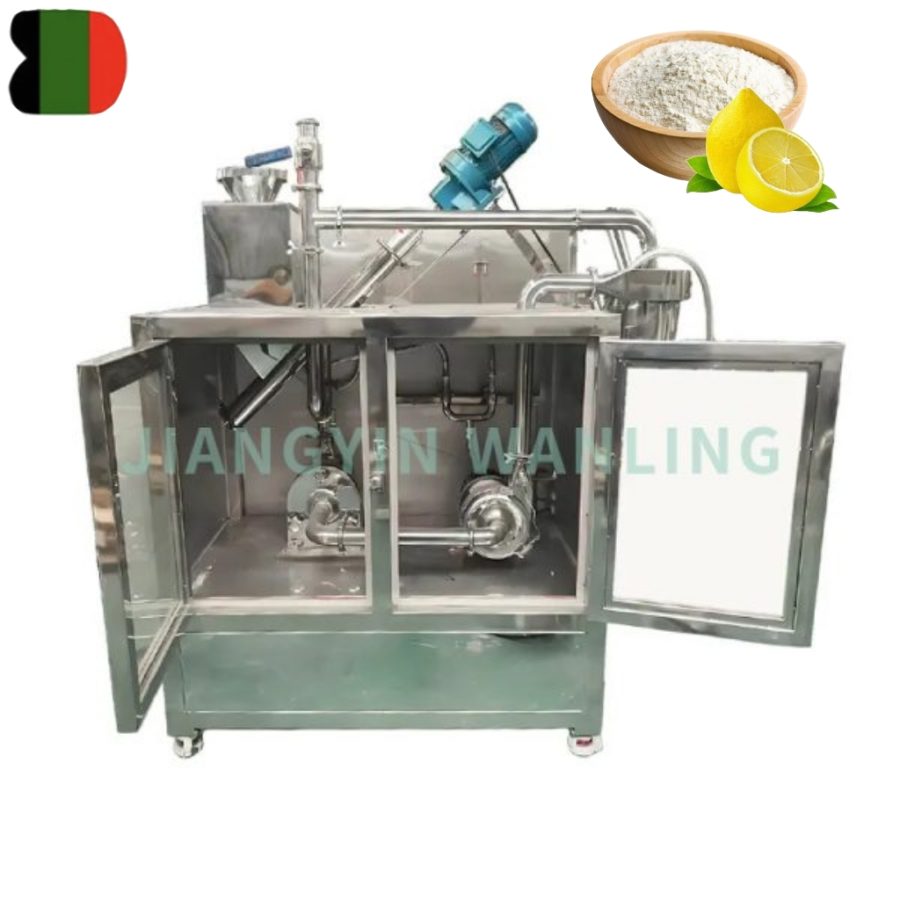

The cryogenic mill machine is a device specially designed for grinding materials in a low temperature environment. It can grind materials into powder at low temperature to avoid chemical reaction, oxidation and deterioration of materials due to high-temperature grinding, while maintaining the original properties and active components of materials, improving grinding efficiency and quality.
The cryogenic mill machine is a device specially designed for grinding materials in a low temperature environment. It can grind materials into powder at low temperature to avoid chemical reaction, oxidation and deterioration of materials due to high-temperature grinding, while maintaining the original properties and active components of materials, improving grinding efficiency and quality.
At room temperature, some sensitive or viscous or elastic materials cannot be ground into fine-grained powder even under high-speed operation. The liquid nitrogen pulverizer adopts the foreign medium freezing method to pulverize the material, realizes the heat exchange between the material and the liquid nitrogen, and can produce very high fineness, which is especially suitable for the powder reduction of particularly difficult materials.
The consumption of liquid nitrogen depends on the product and fineness. This machine adopts microcomputer control device to control the volume and quantity of nitrogen gas.
Microcomputer automatic liquid level control system, the operator only needs to set the desired value of fineness, and the intelligent control system will automatically adjust the temperature, refrigerant valve size, discharge volume and other parameters according to the host's current, temperature, refrigerant valve size, discharge volume and other parameters. parameters such as quantity. Cavity pressure and pipe flow.
| Spec. & Model | 200 | 550 | 800 |
| Crusher chamber diameter (mm) | 200 | 550 | 800 |
| Production capacity(kg/h) | 20-100 | 300-500 | 400-1000 |
| Input size | ≤2cm | ||
| Fine crushed size(mesh) | 10-700(adjustable, upon material ) | ||
| Crusher power(kw) | 7.5 | 45 | 85 |
| Feed power(kw) | 0.37 | 3 | 4 |
| Medium | Liquid nitrogen | ||
| Temperature ℃ | -196~ 0 | ||
The main uses of cryogenic crusher machines include the following:
1. Material grinding: Cryogenic grinding machine can be used to grind various materials, such as chemical raw materials, food raw materials, pharmaceutical raw materials, metal materials, etc.
2. Crushing: The cryogenic grinder can crush the material into fine powder for better application in various industrial and scientific research fields.
3. Mixing: Cryogenic grinder can mix different materials together for better mixing effect.
4. Dispersion: Cryogenic grinders can disperse materials in solutions for better application in dyes, coatings, inks and other fields.
In a word, the cryogenic grinder is an efficient, precise and reliable equipment, which is suitable for the fields of grinding, pulverizing, mixing and dispersing of various materials, especially for the application fields that need to maintain the original properties and active ingredients of the materials.
