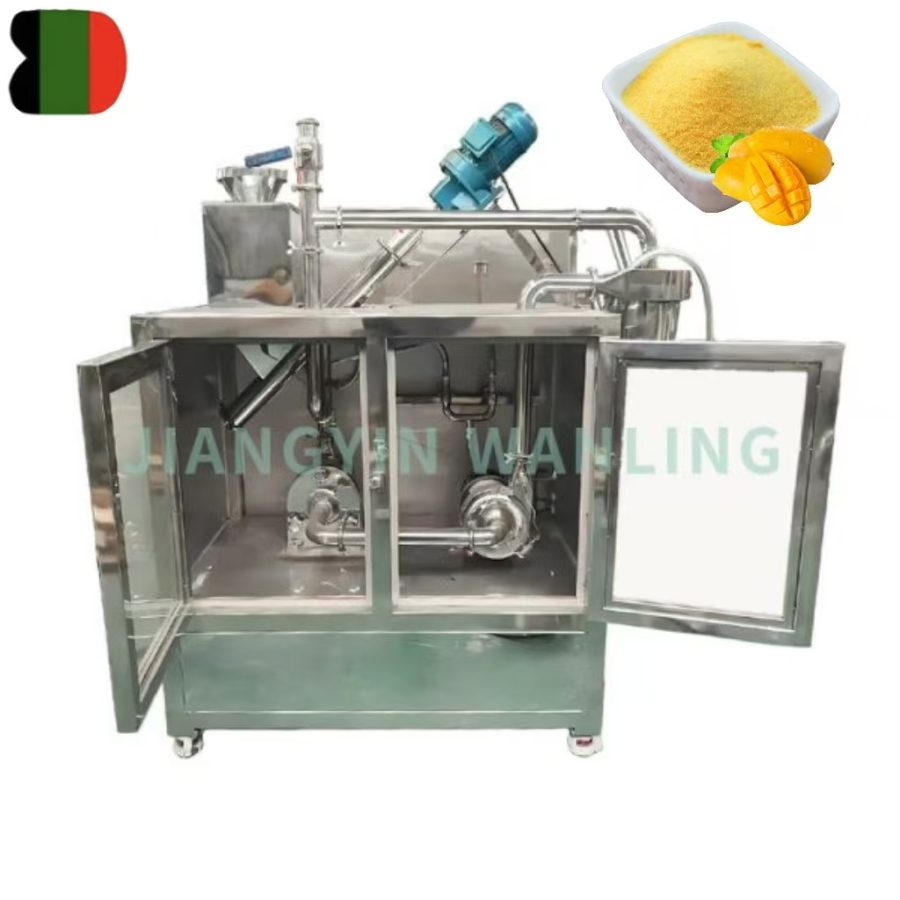

The date grinder machine can grind date to fine powder.though date is sticky,the cryogenic grinder also can make powder.Using liquid nitrogen as the cold source, the crushed material is cooled to a brittle and easily crushed state at low temperatures, and then enters the mechanical crusher chamber through high-speed rotation of the impeller. Under the combined effects of repeated impact, collision, shear, friction, and other factors between the material and the blades, toothed discs, and materials, Achieve crushing effect: The crushed materials are classified and collected by an airflow screen classifier. Materials that do not meet the fineness requirements are returned to the silo for further crushing, while most of the cold air is returned to the silo for recycling
The date grinder machine can grind date to fine powder.though date is sticky,the cryogenic grinder also can make powder.Using liquid nitrogen as the cold source, the crushed material is cooled to a brittle and easily crushed state at low temperatures, and then enters the mechanical crusher chamber through high-speed rotation of the impeller. Under the combined effects of repeated impact, collision, shear, friction, and other factors between the material and the blades, toothed discs, and materials, Achieve crushing effect: The crushed materials are classified and collected by an airflow screen classifier. Materials that do not meet the fineness requirements are returned to the silo for further crushing, while most of the cold air is returned to the silo for recycling
During the material crushing process, the cold source of this frozen crusher system forms a closed loop system, which fully utilizes energy and saves energy consumption. The temperature of the cold source used for crushing can be reduced to minus 196 degrees Celsius. According to the brittleness point temperature of the material, the temperature can be adjusted during the crushing process, and the optimal crushing temperature can be selected to reduce energy consumption. The crushing fineness can reach 10-700 mesh, or even reach micrometers μ Equal fineness: Using liquid nitrogen as the grinding medium to achieve comprehensive effects such as ultra-low temperature crushing, material explosion prevention, and oxidation prevention
| Spec. & Model | 200 | 550 | 800 |
| Crusher chamber diameter (mm) | 200 | 550 | 800 |
| Production capacity(kg/h) | 20-100 | 300-500 | 400-1000 |
| Input size | ≤2cm | ||
| Fine crushed size(mesh) | 10-700(adjustable, upon material ) | ||
| Crusher power(kw) | 7.5 | 45 | 85 |
| Feed power(kw) | 0.37 | 3 | 4 |
| Medium | Liquid nitrogen | ||
| Temperature ℃ | -196~ 0 | ||
The main uses of cryogenic crusher machines include the following:
1. Material grinding: Cryogenic grinding machine can be used to grind various materials, such as chemical raw materials, food raw materials, pharmaceutical raw materials, metal materials, etc.
2. Crushing: The cryogenic grinder can crush the material into fine powder for better application in various industrial and scientific research fields.
3. Mixing: Cryogenic grinder can mix different materials together for better mixing effect.
4. Dispersion: Cryogenic grinders can disperse materials in solutions for better application in dyes, coatings, inks and other fields.
In a word, the cryogenic grinder is an efficient, precise and reliable equipment, which is suitable for the fields of grinding, pulverizing, mixing and dispersing of various materials, especially for the application fields that need to maintain the original properties and active ingredients of the materials.
