This pin cyclone Pulse grinder adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect of food grinding machine is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.

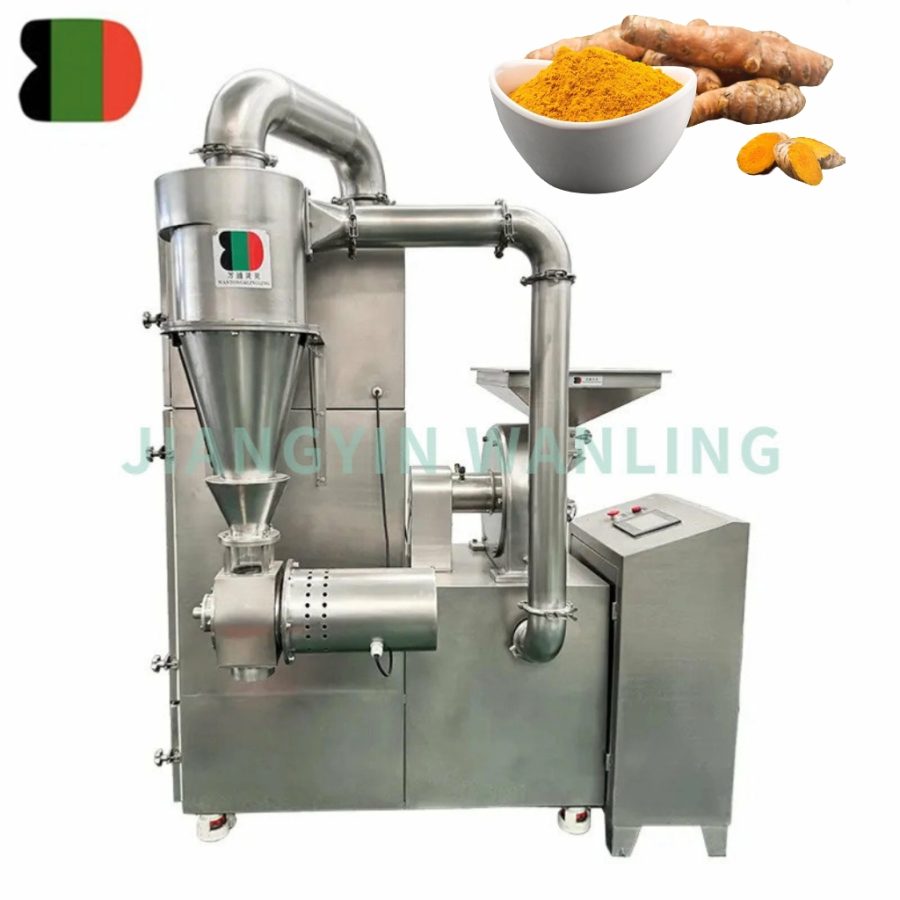

The WANLING WLF pin cyclone dedusting & grinding machine is a new generation of grinding equipment that our firm painstakingly researched and developed based on our crushing expertise and real-world circumstances. This machine is primarily used to crush low-hardness materials in chemicals, dyes, additives, feed, food, and non-metallic minerals with a fineness range of 20–120 mesh. It offers benefits including a large output capacity, fine grain, little noise, low energy usage, simple installation, and ease of maintenance.
This pin cyclone Pulse grinder adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect of food grinding machine is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.
| Type | 20B | 30B | 40B | 50B | 60B |
| Capacity（kg/h） | 20-80 | 50-300 | 100-400 | 300-500 | 300-500 |
| Main Speed (r/min) | 4500 | 3500 | 3400 | 2900 | 2900 |
| Feed Size (mm) | 6 | 10 | 12 | 12 | 12 |
| Discharge Size（mesh） | 20-150 | 20-150 | 20-150 | 20-150 | 20-150 |
| Crush Power (kw) | 4 | 5.5 | 7.5 | 11 | 22 |
| Fan Power(kw) | 2.2 | 2.2 | 2.2 | 3 | 3 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Weight(kg) | 350 | 500 | 600 | 750 | 750 |
| Overall Dimensions(mm) | 1000*800*1600 | 1200*850*1780 | 1480*900*1890 | 1580*1000*2000 | 1800*1200*2200 |
1. Food: sugar powder can be used in spice,cake,seasoning and etc.
2. Health products:sugar powder is rich in nutrients and can be used in health products to promote blood circulation and enhance immunity.
3. Drugs: sugar powder can be used in traditional Chinese medicine formulas, which has the functions of dispelling cold and relieving pain, expelling wind and dehumidification.
In a word, pin mill machine is a kind of equipment specially used to process sugar into powder.
Dear friend,we are professional and reliable company,we have opened for more than 20 years,our machine processing technology is very mature and our company development is very good,we have received many certificates and customer recognition,we are famous in wuxi,if you are interestedin our machine,welcome to contact us.
