CF advanced hammer mill is widely used in pharmaceutical industry, chemical industry, foodstuff industry, powder metallurgy, cosmetic industry, dying stuff industry, etc.
CF advanced hammer mill is a newly developed product that can crush large pieces of material in one step. Without screen inside, it used to grind the raw material into fine powder.Suitable for various seasoning ingredients. Completed on one device for low hardness materials such as whole turmeric, whole chili, leaf etc

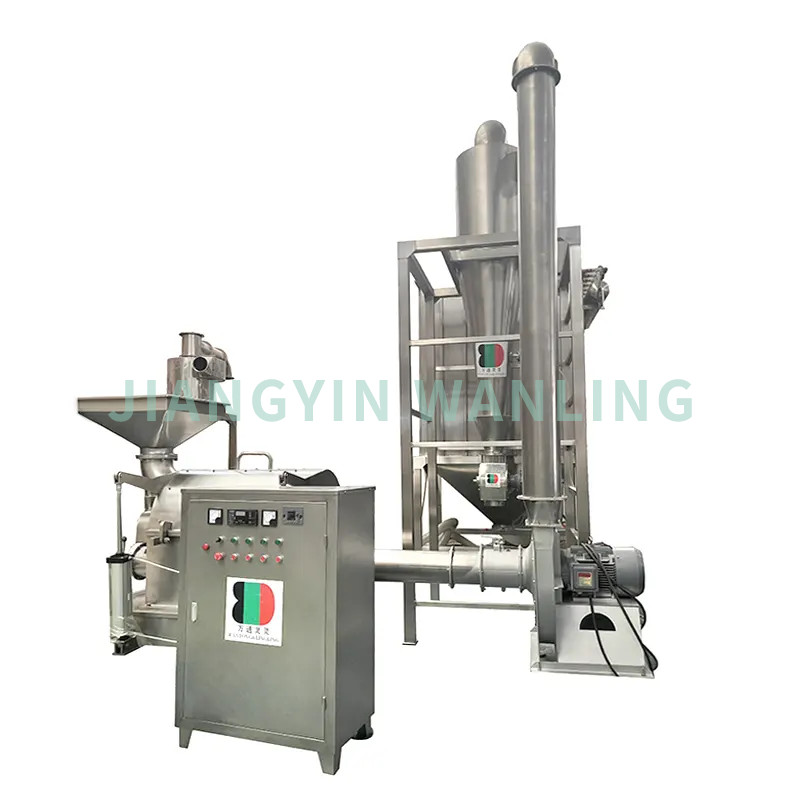

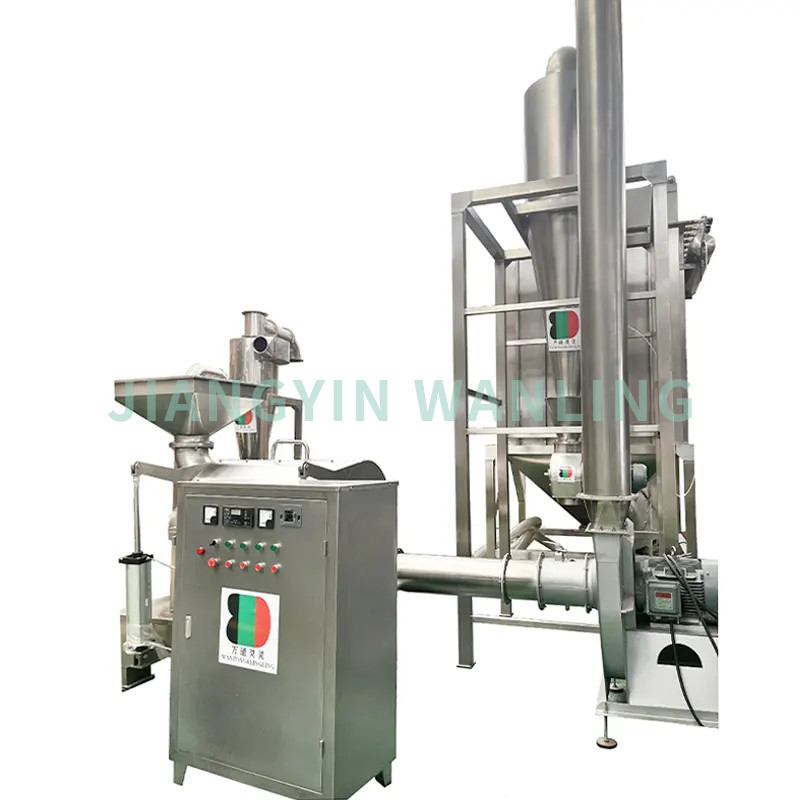

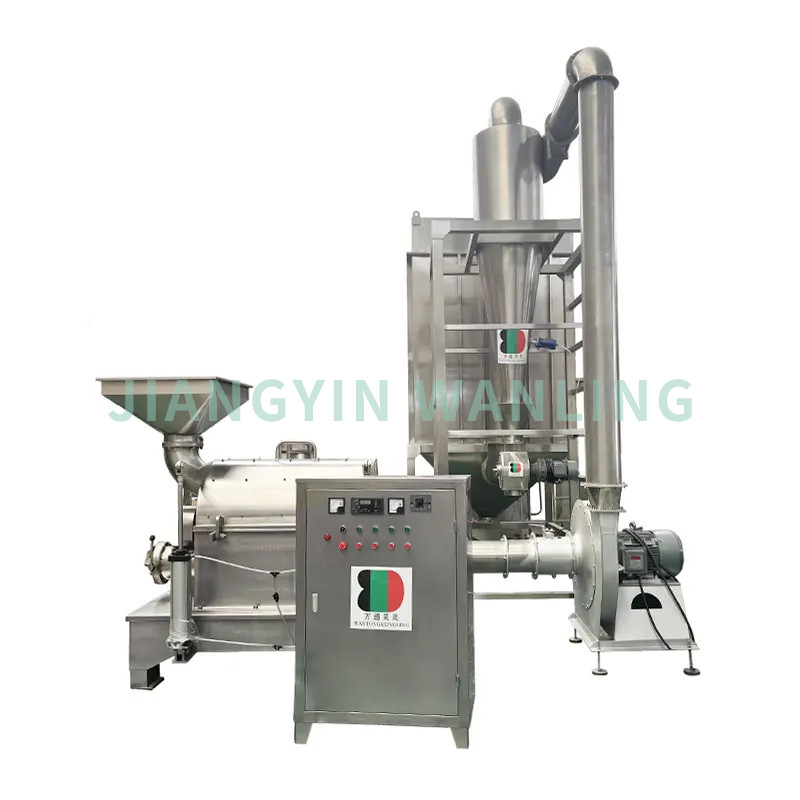

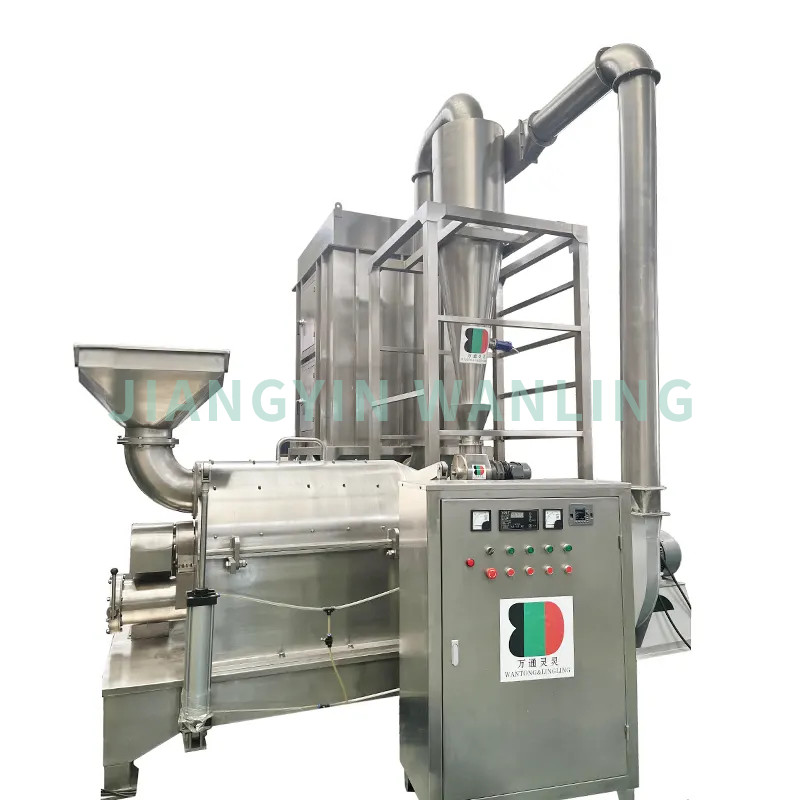

The dried material enters into the CF advanced hammer mill from the feeding hopper then get crushed by the advanced hammer mill inside the cutters and grading wheels. By the force of blower, the powder will discharge from the discharge valve.
| Model | CF-650 | CF-1000 |
| Total power（kw） | 66.8kw | 101.5 |
| Mian speed （r/min） | 2500 | |
| Feed size（mm） | 20 | |
| Crushed size （mesh） | 20~~200 | |
| capacity（kg/h） | 400-700 | 600~~1500 |
| weight （kg） | 2500 | 4000 |
1. With 3 stage blade, one coarse crushing blade, one mid-fine grinding blade, one fine grinding blade in one grinder chamber. Without screen inside, no sieve block condition.
2. With good efficient for big size spices into particle or powder directly.
3. With auto air pneumatic open system, can auto open and close grinder chamber , no need human.
4. With pulse dust collection box, can auto flap filter bag continuously, no need human. No dust when grinding.
5. Reach Food grade GMP,ISO,CE standard.
