The turmeric milling machine is automatic type hammer mill, it also have filter bag,when machine working,filter bag will collect dust and very fine powder. It is a good choice for grinding spice. Because its feed hopper is big,don’t require spice need small,if spice is big,it also can grind directly.for example,it is suitable for grinding turmeric,ginger,chilli,cinnamon and etc.
MAIN APPLICATION
This turmeric milling machine is mainly applicable for the pharmacy, the chemical industry, metallurgy industry, and the foodstuff industry, etc.
MACHINE DESCRIPTION

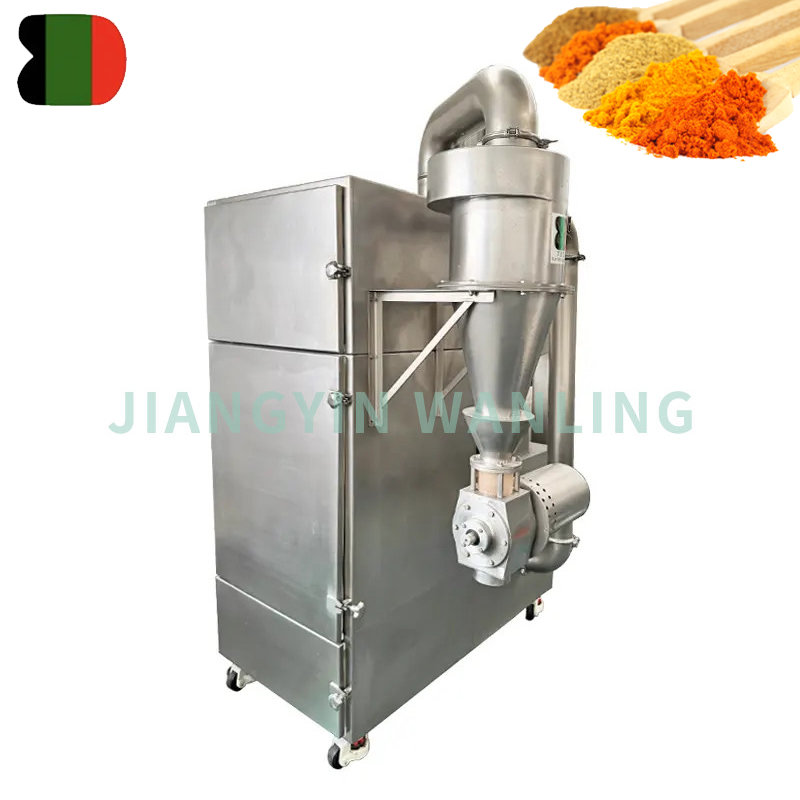

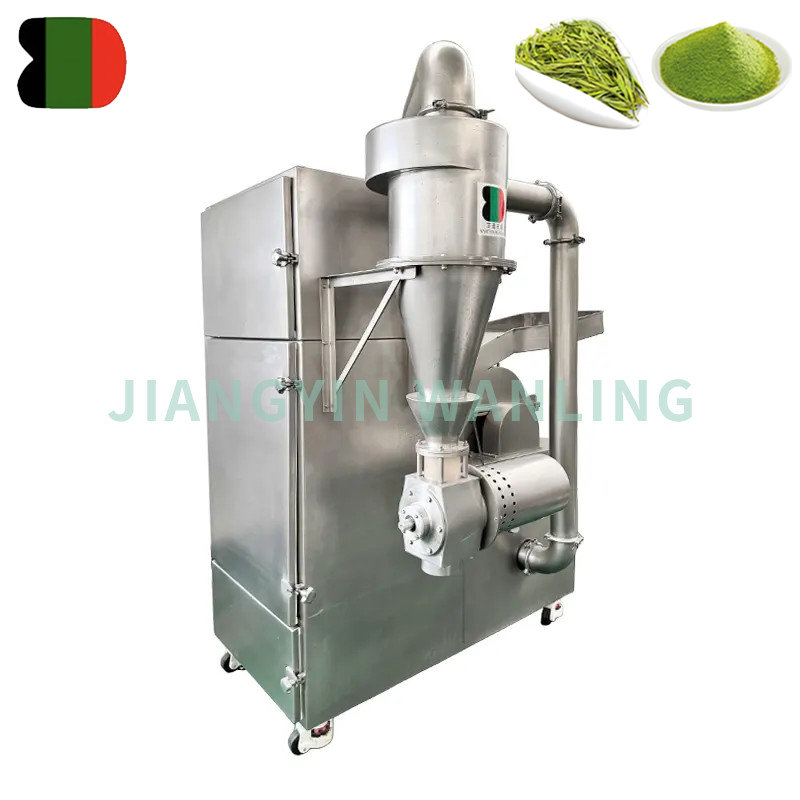

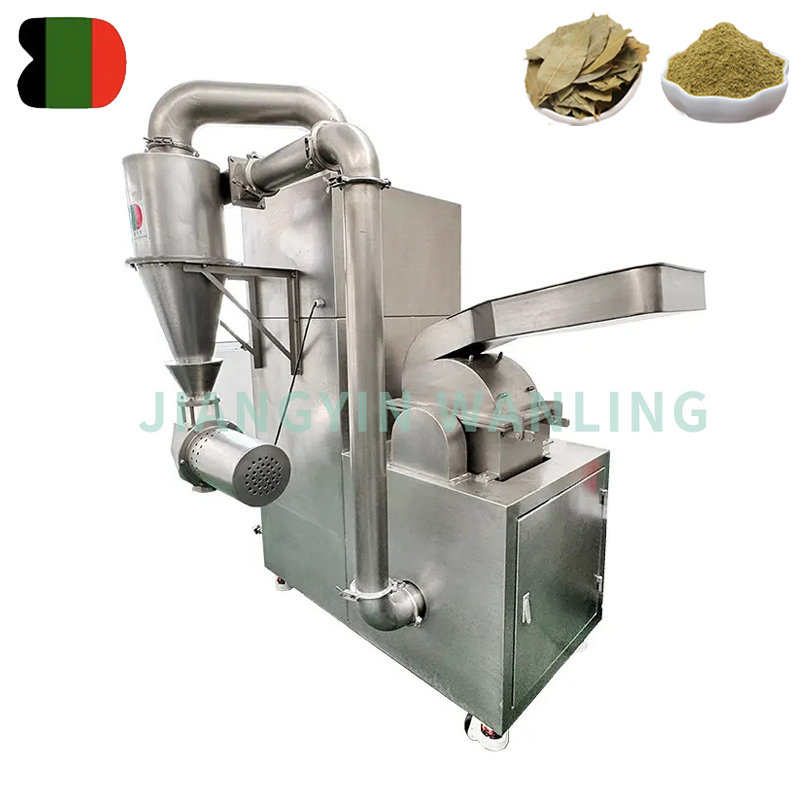

Turmeric milling machine with pulse dust collector box.The grinder is composed of feed hopper, grinder chamber, dust collector box, auto cyclone discharge part,pulse system and other components. The machine suitable for easily crushed materials not suitable for hard materials. The material enter the crush chamber through the feed hopper. The material is crushed by the mutual impact and cutting between the rotating blades and the fixed blades. The dischargesize is controlled by the aperture of the screen mesh. The material is automatically discharged through the cyclone pulse.
TECHNICAL PARAMETERS
| Model | GFSJ-8 | GFSJ-16 | GFSJ-32 |
| Capacity (kg/h) | 10-100 | 100-300 | 300-800 |
| Fineness (mm) | 20-120 | ||
| Motor power (kw) | 3 | 7.5 | 11 |
| Spindle speed (rpm) | 2350-4360 | 1000-2400-4400 | |
| Overall size (mm) | 1050*600*1600 | 1100*860*1520 | 1280*950*1600 |
| Weight (kg) | 150 | 300 | 450 |
COMPANY ADVANTAGE
1. Real factory- We Real and expert factory, welcome you video call anytime to Verify our factory authenticity
2. Long history-We More 23years old and big factory in china,we are famous in wuxi
3. Certification-we have CE and ISO certificate
4. Competitive price-Our technology is very mature,our worker is high efficient,we normally produce 10 sets at a time,save much cost.So our machine price is the best
5. Safe delivery- Machine packed with film and wooden case,also be fixed by rope,very safe when delivery
