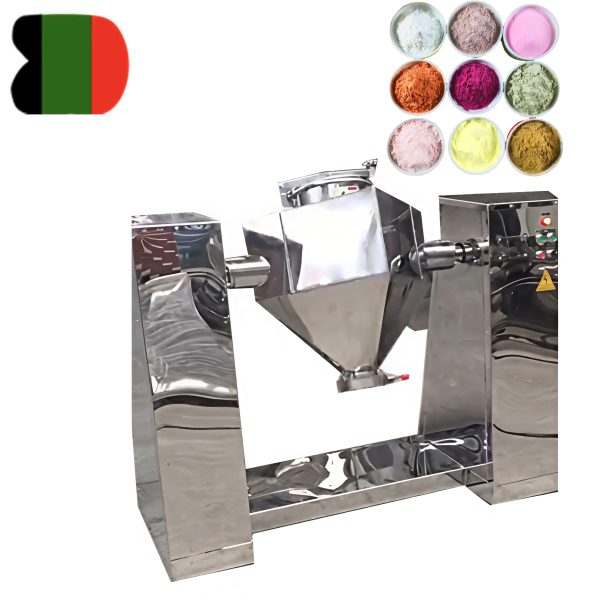

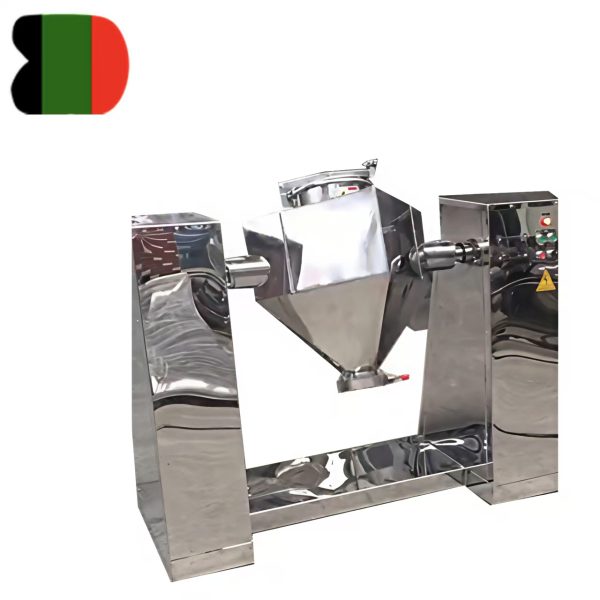

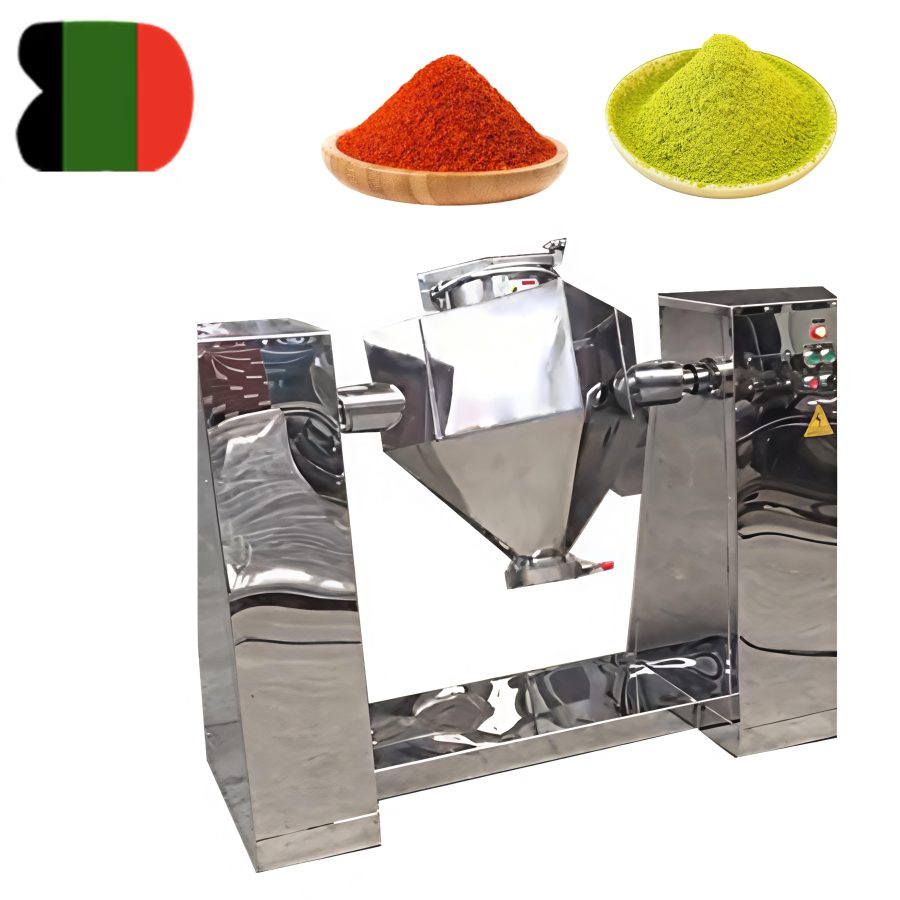

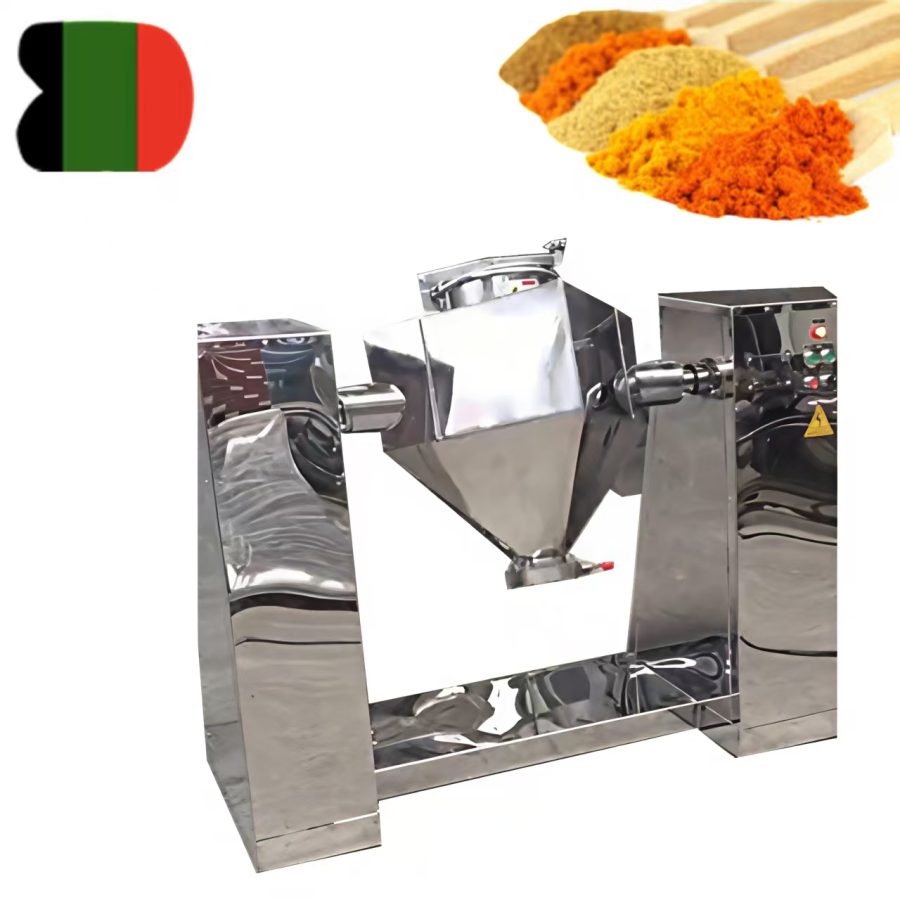

Cone mixer consists of machine frame, drive system, control system, and blending hopper, etc. When working, first load the material into bin and then lock the bin cover. Set the blending time, blending speed, and start the control system, the blending process begins. When reaching the set blending time, the equipment will stop automatically, and the blending process is finished.
MAIN INTRODUCTION
Cone mixer consists of machine frame, drive system, control system, and blending hopper, etc. When working, first load the material into bin and then lock the bin cover. Set the blending time, blending speed, and start the control system, the blending process begins. When reaching the set blending time, the equipment will stop automatically, and the blending process is finished.
FEATURES
1. Fast mixing of dry powder/granules with good flowability
2. Easy for installation and daily clean.
3. Reach Food grade GMP, lSO ,CE standard
4. Commonly use butterfly valve for discharging
5.This mixer with time controller , can set mixing time
TECHNICAL DATA of w double cone blender
| MODEL | 300 | 500 | 1000 | 1500 | 2000 |
| Cubage of mixing cylinder(L) | 300 | 500 | 1000 | 1500 | 2000 |
| Max. loading cubage(L) | 240 | 400 | 800 | 1200 | 1600 |
| Max. loading weight(mm) | 150 | 250 | 500 | 750 | 1000 |
| Spindle speed(r/min) | 14 | 13 | 12 | 10 | 8 |
| Motor power(kw) | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
| Weight(kg) | 500 | 700 | 1000 | 1500 | 2000 |
| Overall dimension (L*W*H)(mm) | 2010*1240*1800 | 2200*1530*2220 | 2800*2000*2820 | 2930*2300*2950 | 3100*2460*3160 |
Addition: About the mixing time, because of the different kinds of materials with different elements, quantities, fineness, proportions, the mixing time varies much depending on the clients' practice.
