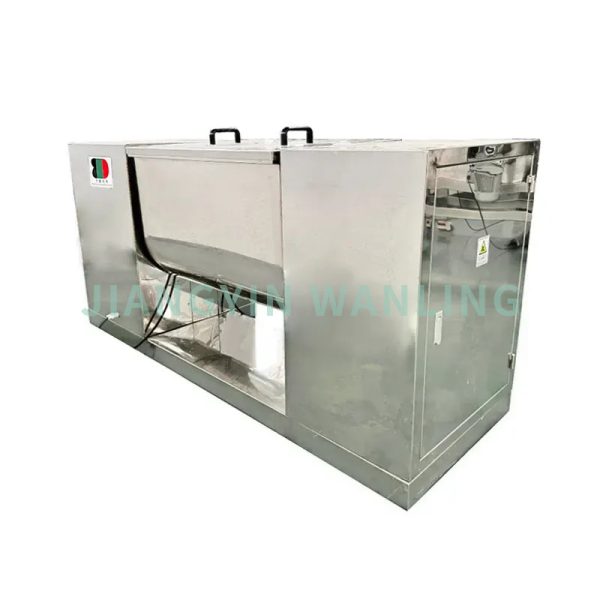

This WANLING feed mixing machine is designed for mixing evenly with powder or paste. The utility model relates to a horizontal through-type mixer with a single arm or a double arm stirring arm. The stirring arm is detachable and easy to clean.
The dye blender machine through mechanical rotation to drive S type agitator, promote the materials reciprocating flipping, uniform mixing. When operating using electric control, can set up time of mixing, then automatically stop, so as to improve the mixing quality of each batch.
|
Type |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Paddle shape |
S-style single paddle |
|||||||
|
Working volume(L) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Mixing speed(r/min) |
24 |
|||||||
|
Flip angle |
<105° |
|||||||
|
Mixing power(kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
7.5 |
11 |
|
Pouring motor power(kw) |
0.37 |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
|
Overall size (mm) |
1200×500×950 |
1400×580×1000 |
1800×600×1150 |
2000×650×1200 |
2200×700×1250 |
2280×750×1250 |
2350×800×1300 |
2400×850×1350 |
|
Weight(kg) |
280 |
350 |
410 |
450 |
520 |
580 |
|
|
