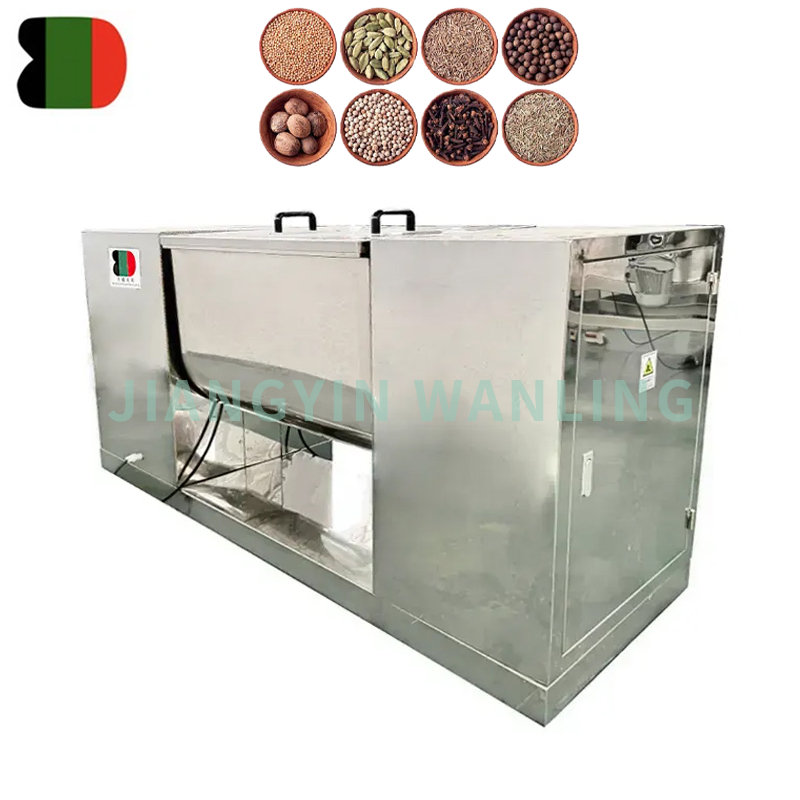

CH single paddle mixer have one set paddle in the machine. When machine work,the paddle will rotary very quick,then the product will be mixed in a short time.The machine has the characteristics like compact structure, simple operation, and beautiful shape; cover a small area, convenient to clean, mixing effect quantity is good and so on.
The dye blender machine through mechanical rotation to drive S type agitator, promote the materials reciprocating flipping, uniform mixing. When operating using electric control, can set up time of mixing, then automatically stop, so as to improve the mixing quality of each batch.
|
Type |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Paddle shape |
S-style single paddle |
|||||||
|
Working volume(L) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Mixing speed(r/min) |
24 |
|||||||
|
Flip angle |
<105° |
|||||||
|
Mixing power(kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
7.5 |
11 |
|
Pouring motor power(kw) |
0.37 |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
|
Overall size (mm) |
1200×500×950 |
1400×580×1000 |
1800×600×1150 |
2000×650×1200 |
2200×700×1250 |
2280×750×1250 |
2350×800×1300 |
2400×850×1350 |
|
Weight(kg) |
280 |
350 |
410 |
450 |
520 |
580 |
|
|
