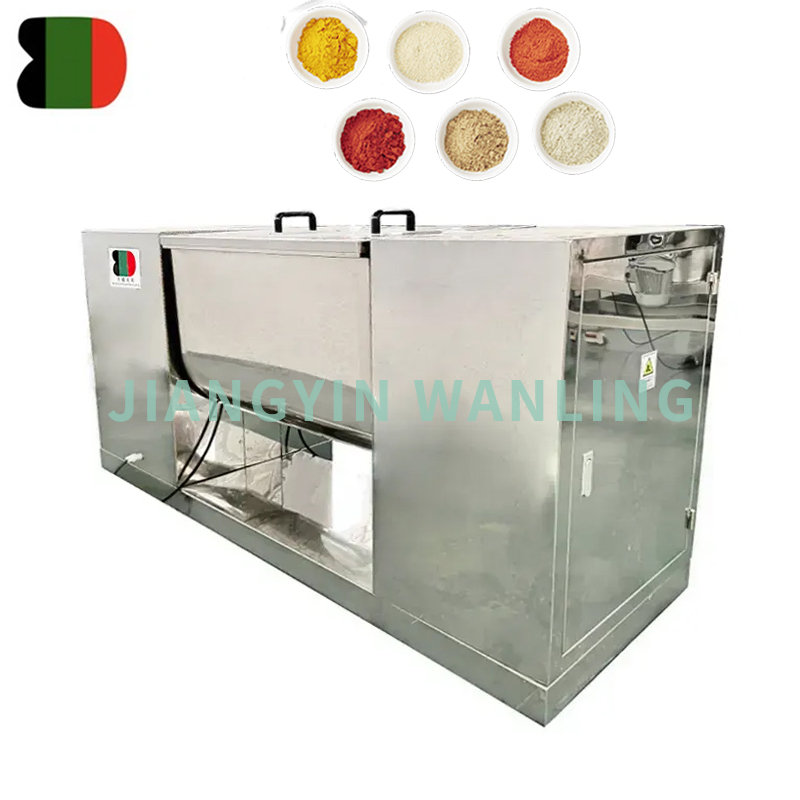

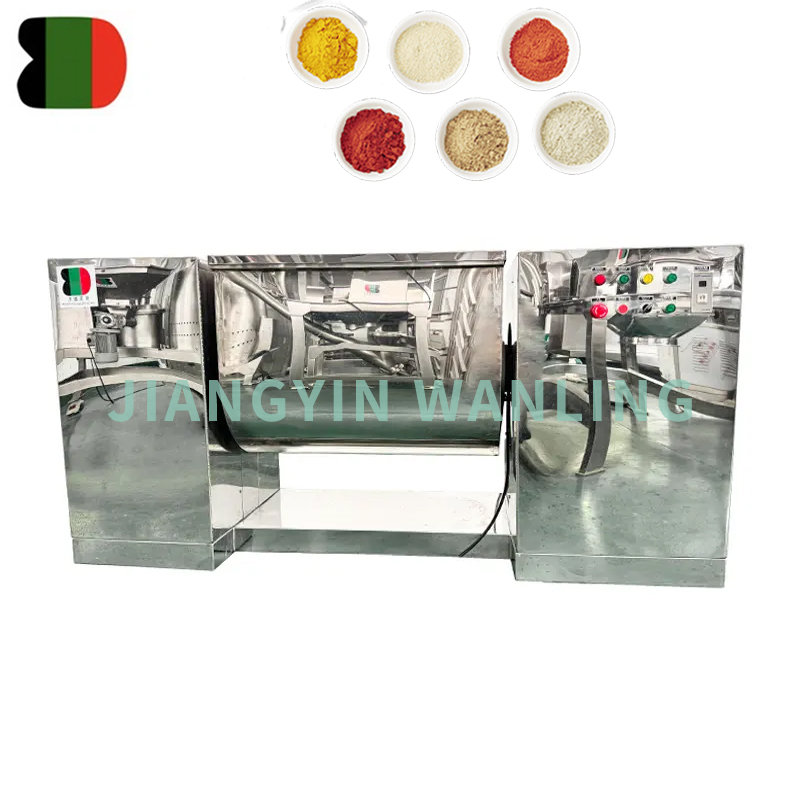

This Trough Shape Blender is generally used for dry powders, wet materials and viscous pastes. The mixing shaft is provided with a sealing device at both ends to prevent the material from leaking. This high performance equipment is constructed with qualified stainless steel, widely used in pharmaceutical, chemical, food and other industries.
The dye blender machine through mechanical rotation to drive S type agitator, promote the materials reciprocating flipping, uniform mixing. When operating using electric control, can set up time of mixing, then automatically stop, so as to improve the mixing quality of each batch.
|
Type |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Paddle shape |
S-style single paddle |
|||||||
|
Working volume(L) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Mixing speed(r/min) |
24 |
|||||||
|
Flip angle |
<105° |
|||||||
|
Mixing power(kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
7.5 |
11 |
|
Pouring motor power(kw) |
0.37 |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
|
Overall size (mm) |
1200×500×950 |
1400×580×1000 |
1800×600×1150 |
2000×650×1200 |
2200×700×1250 |
2280×750×1250 |
2350×800×1300 |
2400×850×1350 |
|
Weight(kg) |
280 |
350 |
410 |
450 |
520 |
580 |
|
|
