MAIN DETAIL

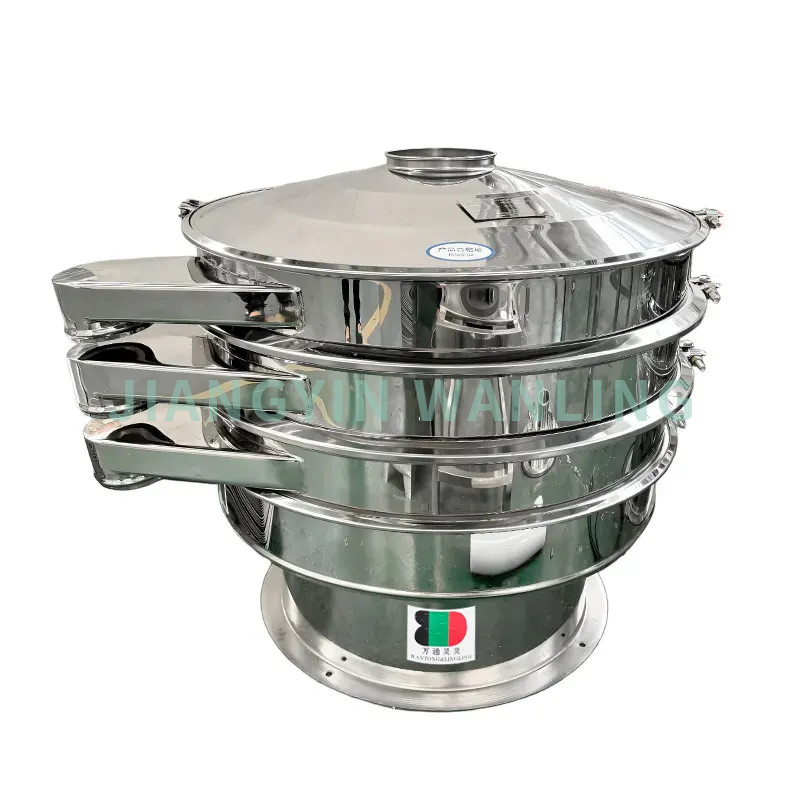

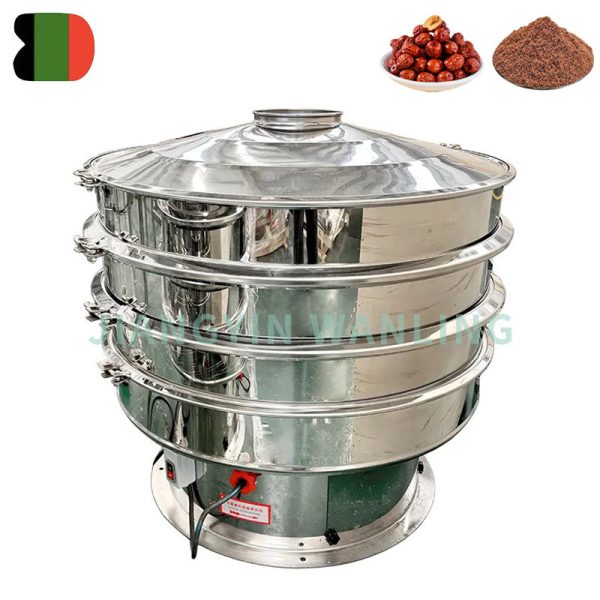

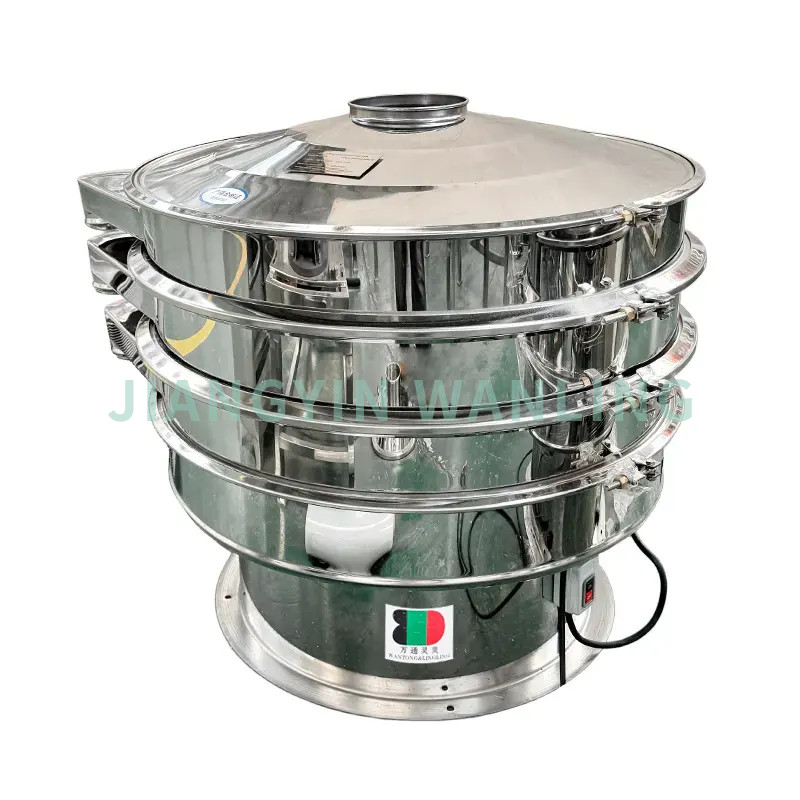

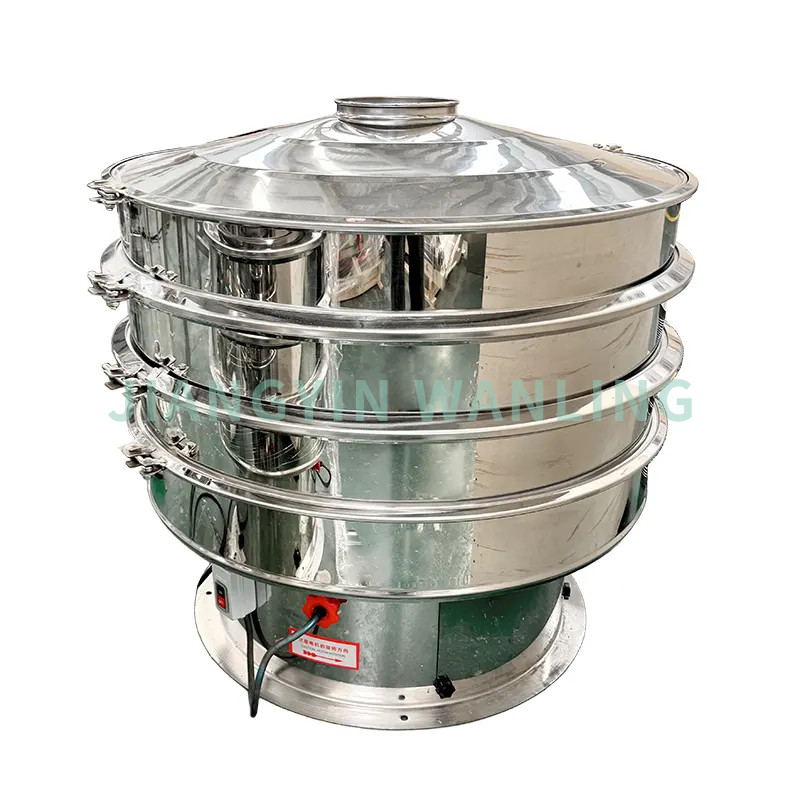

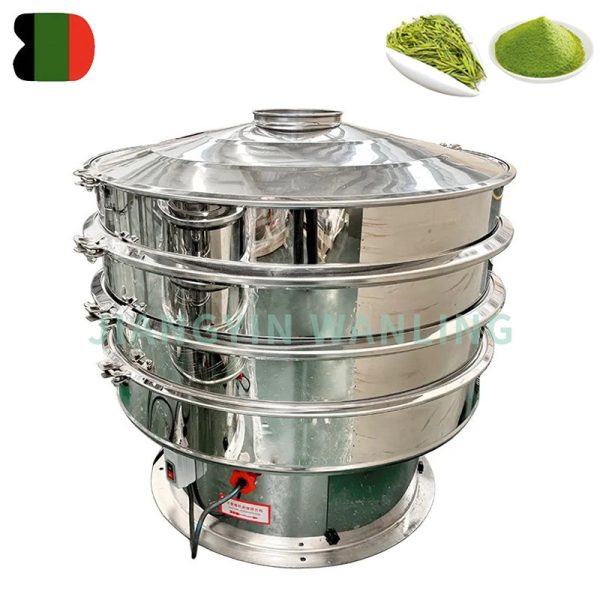

1. This vibrating powder sifter machine is made up of stainless steel 304
2. Meeting ISO 9001 and SGS certificate
3. This powder sifter machine is mainly used for separate the different size of raw material
4. This vibrating powder seperator machine can design to 1~4 layers, 2~5 discharging mouth, so consumer need to make sure your needs before placing the order
5. The sieve mesh can change
6. Round shaped design
APPLICATION
Rotary vibration screen machine is a high precision fine powder screening machine. The working principle of vibrating screen is that the unbalanced weight dropper installed on the top and bottom ends of motor to change the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removing impurities.
TECHNICAL PARAMETERS
|
Model |
ZS-400 |
ZS-600 |
ZS-800 |
ZS-1000 |
ZS-1200 |
|
Capacity (Kg/h) |
50-500 |
100-800 |
200-1200 |
300-1800 |
400-2500 |
|
Motor power (Kw) |
0.2 |
0.4 |
0.75 |
1.1 |
1.5 |
|
Fineness(mesh) |
2-200 |
||||
|
Weight (kg) |
200 |
250 |
320 |
390 |
420 |
|
Overall size (mm) |
600×500×1100 |
800×700×1150 |
1100×9500×1150 |
1200×1100×1250 |
1380×1300×1280 |
